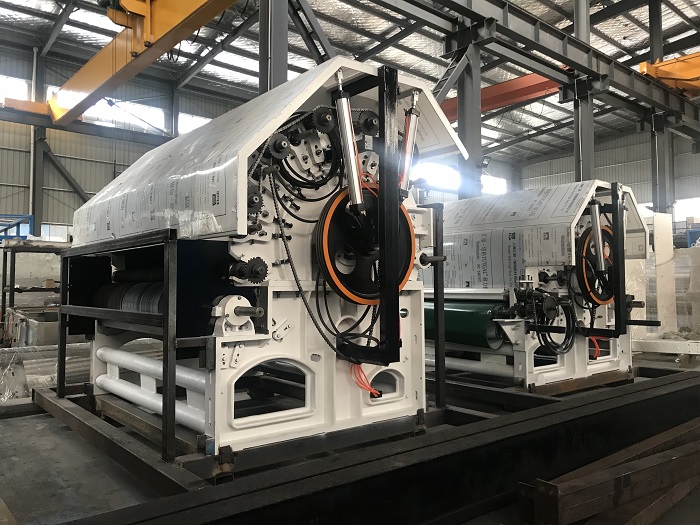

2000*1230 mm Double Cylinder Double Doffer Carding Nonwoven Making Machine
1. Working Width: 2000mm
2. Mechanical type: Double Cylinder double doffer four clutter
3. Output line speed:120m/min
4. Main cylinder dia 1230mm with 5 sets working zones,
5. Four rollers feeding with frequency control, installed with anti-metal alarm and auto-reverse function
6. Installed with 7 sets frequency changer all is individual control, respectively to control the feeding, cylinder, doffer, inner clutter, outer clutter ,output lattice ;
7. Two layers output, the lattice is PVC lattice
8. Top cover with PVC material, and lifting with air pressure
9. 4kw motor suction edge fan on each side of the machin
10. Stand height：75cm，Step platform width：1m
11. Main components：frame、stand platform、step、roller、grid、housing、suction device
12. Working principle：Even layer through multiple carding，wipe off impurity in the carding process，to be even layer;
13. This carding machine is fifth carding machine，prototype as HDB carding machine，Omni seal and pressurization system can remove questions of stuck at feeding part, hanging fiber.
